Home/Printing equipment/Product/UV Flatbed Printer/Universal F3-XL-Pro UV Flatbed Printer

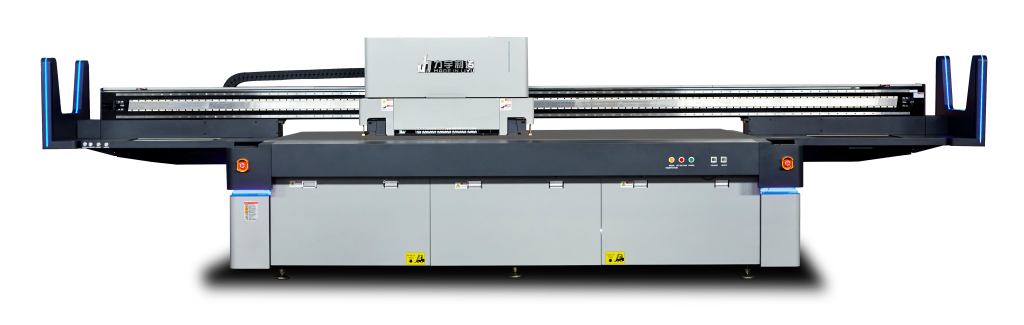

Universal F3-XL-Pro UV Flatbed Printer

The Universal F3-XL-Pro UV Flatbed Printer integrates the most advanced hardware configuration and industry-leading segmented UV lamp control technology, achieving a perfect balance of precision and speed.

12-color option
Dual workstation

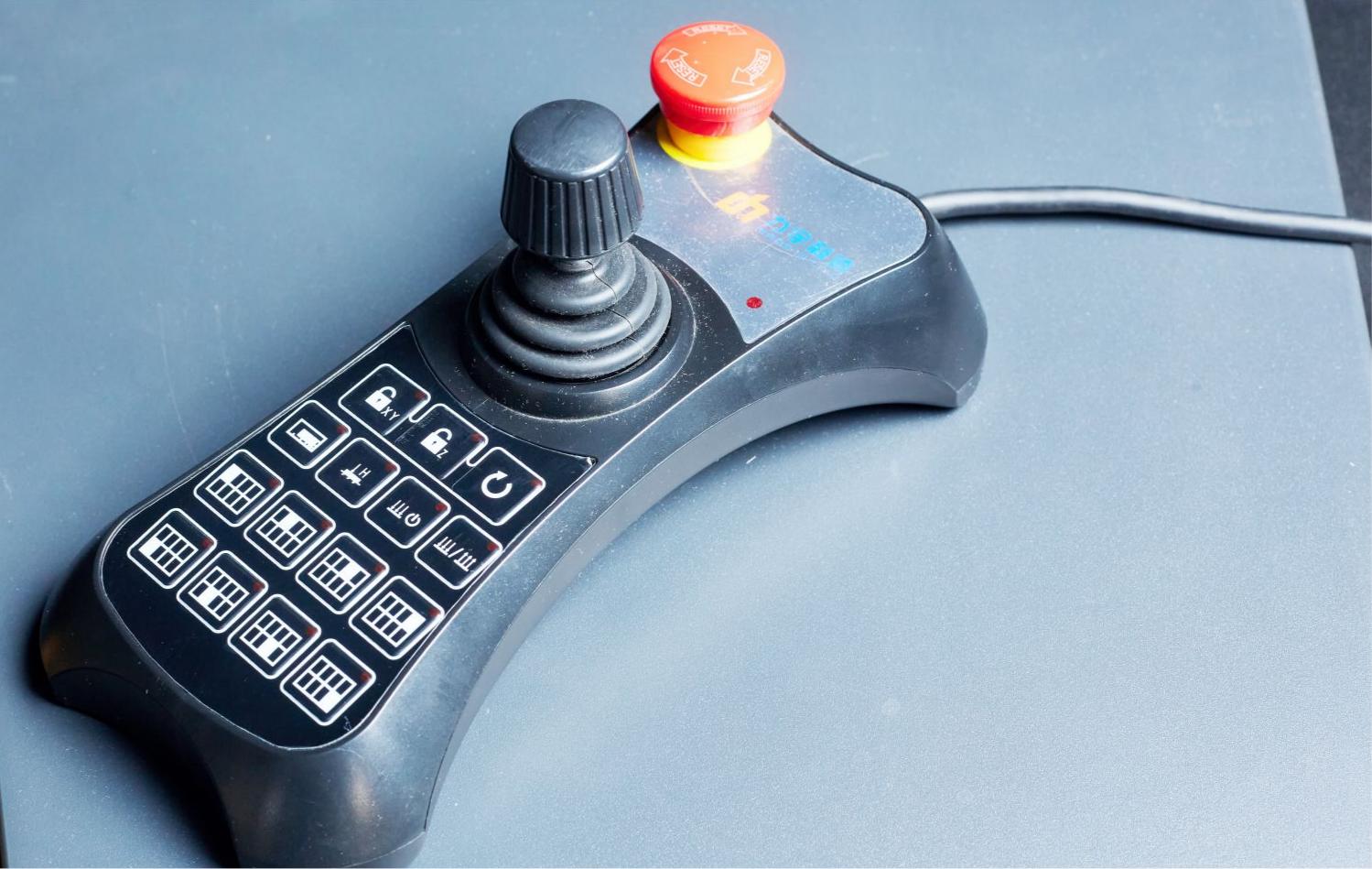

Dual handle
Unlimited extendable platform
Ultra-high-speed UV technology
Triple linear guide configuration
Segmented UV curing technology

More 400-6606-258 Product Manual

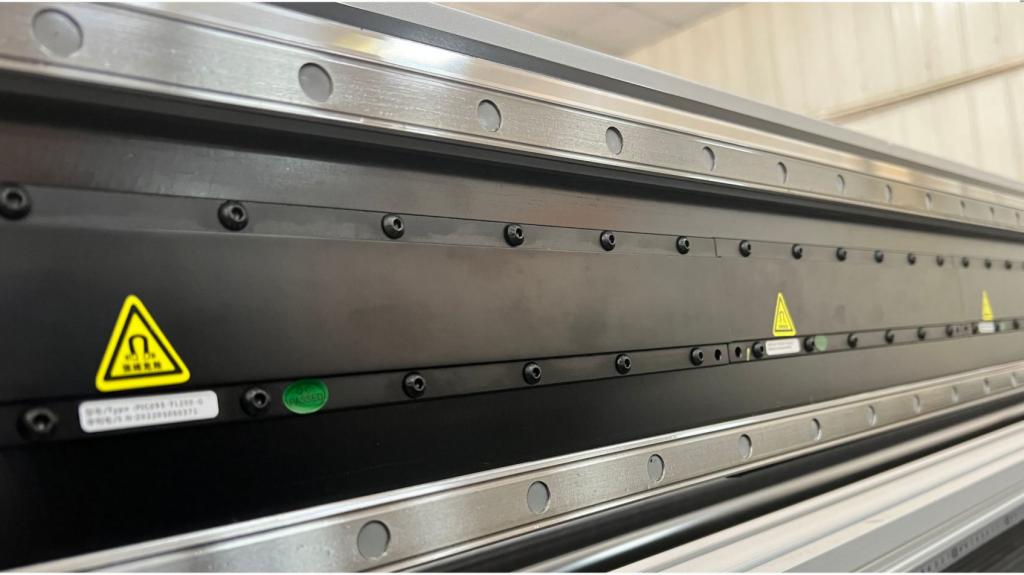

1. The printer incorporates a metal grating and a triple linear motor system on the X/Y axes, ensuring quieter, more precise, and stable operation;

2. The unique dual-workstation with dual-handle control allows for alternate processing across two workstations, significantly improving work efficiency;

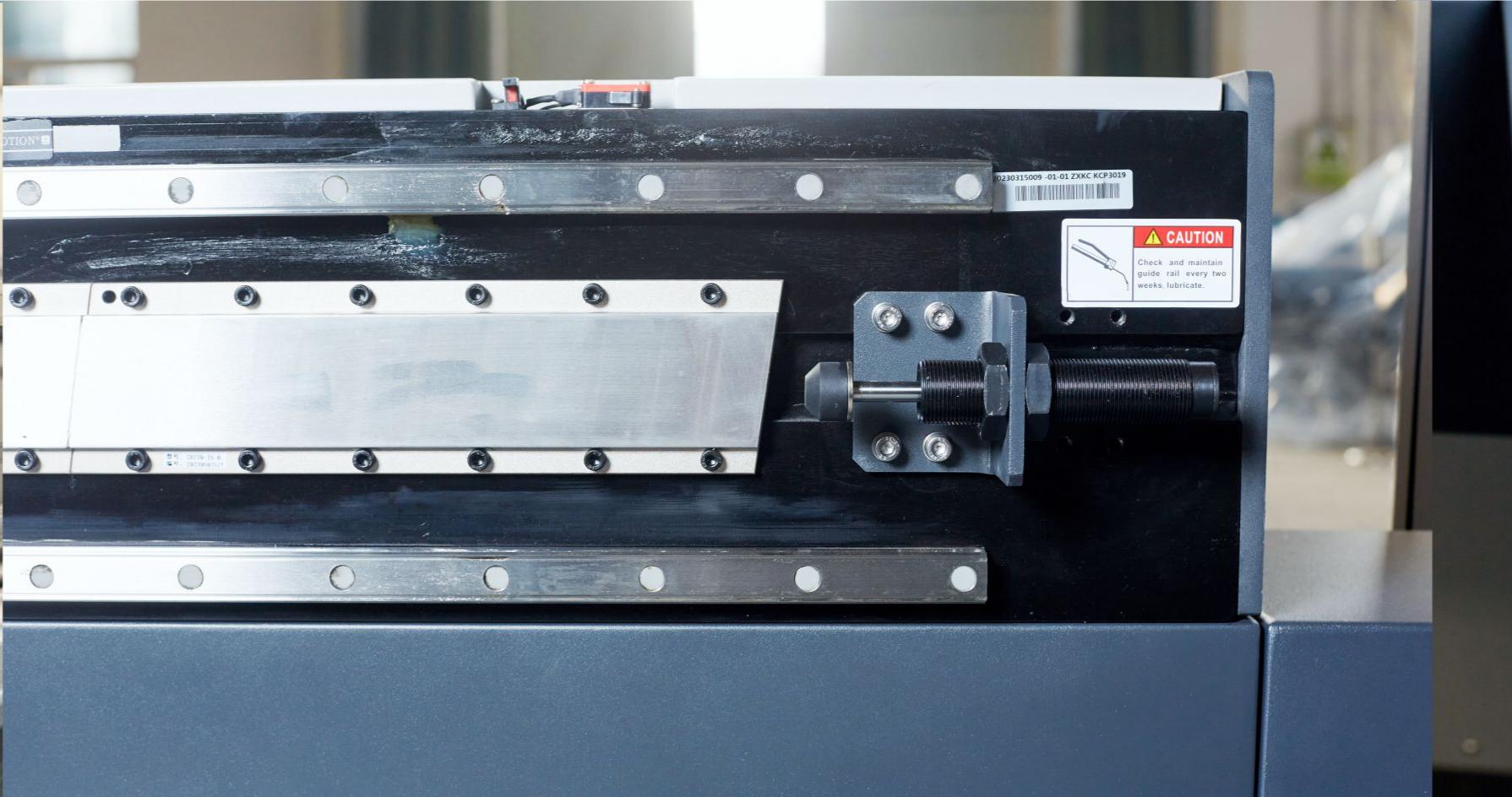

3. The combination of front and rear pneumatic positioning pins guarantees precise positioning during operation, enabling users to complete various printing tasks with greater ease;

4. The independent air flotation function assists operators in effortlessly loading and unloading large-format materials;

5. The intelligent ink supply system provides a more stable ink supply for the equipment, meeting the stable demand for ultra-high-precision UV printing;

6. Equipped with newly upgraded LED curing technology, a single equipment can realize seamless switching between multiple printing modes so as to accommodate various application scenarios;

7. The newly upgraded safety light curtain and optimized anti-collision continuous printing function ensure safety during operation, allowing users to work with greater peace of mind.

Model	KC-XL3020
Print technology	DOD
Type of print head	Ricoh G6
Print head control	Use software to adjust the temperature and voltage of the print head
Maximum media size	3050 mm*2025 mm
Printing mode of the print head	1 head for 2 colors / 1 head for 1 color
Printing resolution of the production mode	635 × 900 DPI (1 head for 2 colors) 635 × 1200 DPI (1 head for 1 color)
Maximum printing resolution	635 × 2400 DPI (1 head for 2 colors) 635 × 4800 DPI (1 head for 1 color)
Efficiency in draft mode	350 m2/h
Efficiency in production mode	210m2/h
Efficiency in high precision mode	100m2/h
Ink type	UV ink
Color option	KCMY Lc Lm W V (additional spot color channels available)
Drying system	Intelligent software-controlled LED lamps with adjustable light-emitting area (L: 300 mm)
Printing media	Rigid materials: PVC, glass, acrylic, etc.; roll materials: car stickers, leather, light slice, etc.
RIP software	Support image printing formats such as JPEG, TIFF, and PDF
Maximum print height	≤10 cm
Motion parameters	X-axis: linear motor; Y-axis: dual linear motor; and Z-axis: stepping motor
Ink supply system	Automatic continuous ink supply under vacuum negative pressure; white ink agitation system; ink path deaeration
Ink pressing system	Individual channel for colored ink pressing
Media absorption	Software-controlled platform zoned vacuum adsorption; platform air flotation
Table load capacity	50 kg/m
Safety protection device	X-direction safety light curtain with LED status indicator; anti-collision sensors for foreign objects on the bilateral platform of print carriages; Handle control for easy operation; One-touch positioning with pneumatic auto-positioning device for printing media; Igus cable carriers, with separate routing for air/ink paths and electrical circuits, enable extended operation and prolonged lifespan of air/ink tubes and power cables. Rich print head configuration options to meet specialized printing requirements such as Color-White-Color (CWC), White-Color-Varnish (WCV), and Color-White-Black-White-Color (CWbWC).
Industrial-grade features	One-touch positioning with pneumatic auto-positioning device for printing media; ink cable carriers, with separate routing for air/ink paths and electrical circuits, enable extended operation and prolonged lifespan of air/ink tubes and power cables. Versatile print head configuration options to meet specialized printing requirements such as W, V, WBW and other custom combinations. High-power static eliminator with wide amplitude and broad coverage.
Package size	Split packaging case size: 5750 × 2300 × 1890 mm
Machine size	Machine size (disassembled): 5520 × 2155 × 1630 mm Machine size (assembled): 5970 × 3075 × 1630 mm
Machine weight	2100 kg
Power supply	AC 220 V±10% 50 HZ /AC 220 V±10%50 HZ
Environmental requirements	Temperature 15℃ ~ 30℃; relative humidity 40% ~ 80%
Other features	Anti-collision system, media positioning, white ink agitation & circulation, automatic distance measurement, color-separated ink pressing, and static elimination device
